Diamond Band Pathology Saw – Bone Cutter

The diamond band pathology saw impresses with its compact design and was designed as a closed system especially for the precise separation of tissue, muscle tissue, bones (also with implants and screws) for histological evaluation in pathology, veterinary medicine, anatomy, implantology and dental research.

Highlights

- Perfect cut

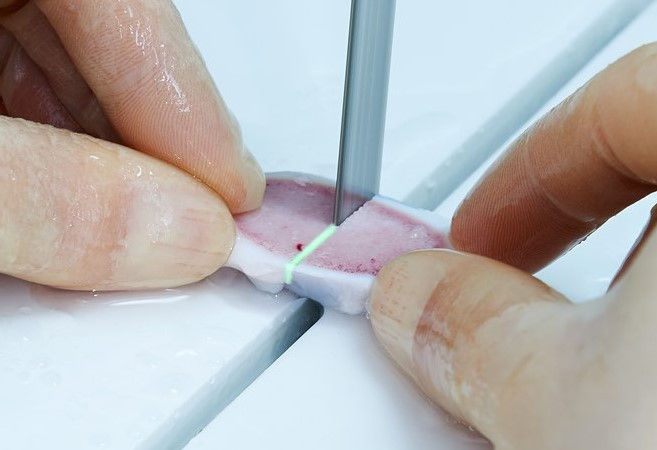

- Laser-marked cutting process

- Minimal material loss

- Excellent surface quality

- Time and cost savings in cleaning

- Easy handling

- Safety first

- Quality from Switzerland

Technical Specifications

Material exterior:

Stainless steel 1.4301 (V2A)

Material interior:

Stainless steel 1.4571

External dimensions (WxHxD)

1350 x 1980 x 751 mm

Installation area (WxD):

1550 x 800 mm

Diamond cutting tape:

0.3 x 13 mm

Band speed:

5 - 26 m / s

Water fittings:

Mixer tap with swivel spout and shower mounted on the service cell near the basin

Cut size (WxHxD):

max. 845 x 330 x 340 mm

Sliding table dimensions (WxD):

830 x 335 mm

Exhaust connection ∅ (DN):

200

Exhaust air volume:

200 - 400 m3 / h

Electrical connection:

3PE AC, 400/500 V, 50/60 Hz

Validation:

9.5 / 7.6 A

Engine power:

4.0 kW

Cold / hot water connection:

1 x 3/4 ″ each

Drain (DN):

Laser:

Class 2M, green

Recessed light:

36W, 500 lux

Weight:

235 kg
