Body Lifter
Professional Lifting and Transfer System

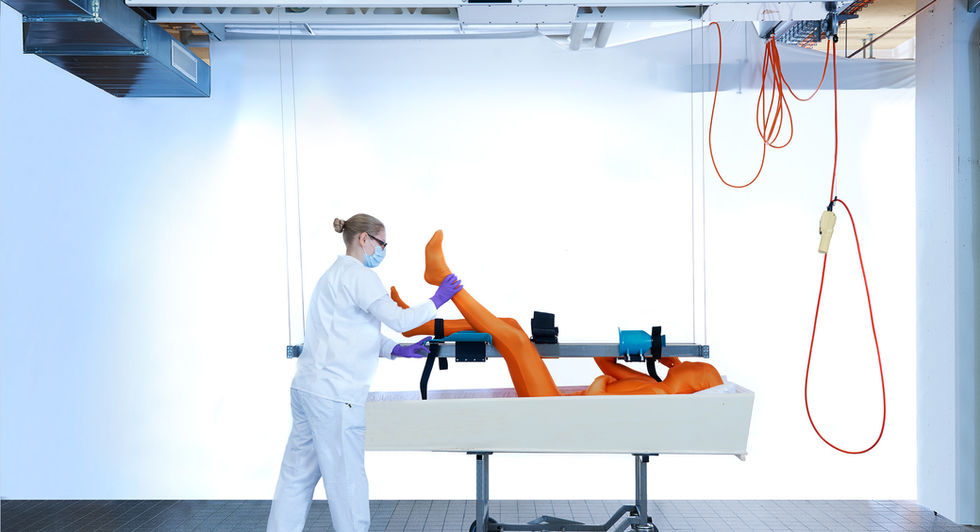

The ceiling system, developed using the latest technology, meets all complex requirements for lifting and transporting bodies. The Body Lifter offers a perfect solution for lifting and moving bodies from one place to another. The transfer from a hospital bed or a narrow coffin to a mortuary trolley and vice versa can be carried out effortlessly by one person. The Body Lifter can be mounted permanently to the ceiling or supplied slidable on a ceiling rail system that can be easily adapted to local requirements. The safety features and easy handling of the Body Lifter make this product a market leader.
Technical Specifications
Material lifting beam on ceiling:
CrNi steel 1.4301 / aluminum
External dimensions fixed lifting beam on ceiling (LxWxH):
2005 x 388/430 x 225 mm
External dimensions slidable ceiling beam (LxWxH):
2005-4000 x 388/430 x 225 mm
Movement along the rail; sliding version:
Manually
Material lifting rack:
Aluminum / stainless steel 1.4301
External dimensions lifting rack (LxW):
1940 x 355/570 mm
Arm and leg holder:
Integrated, movable, foldable
Control element:
Electric, 2 buttons
Lifting height:
≤ 2400 mm
Electrical connection:
3 PE AC, 400/500 V, 50/60 Hz
Fuse:
Min. 13 A
Engine power:
0.37 kW
Weight:
160 kg
Load capacity:
Max. 300 kg
